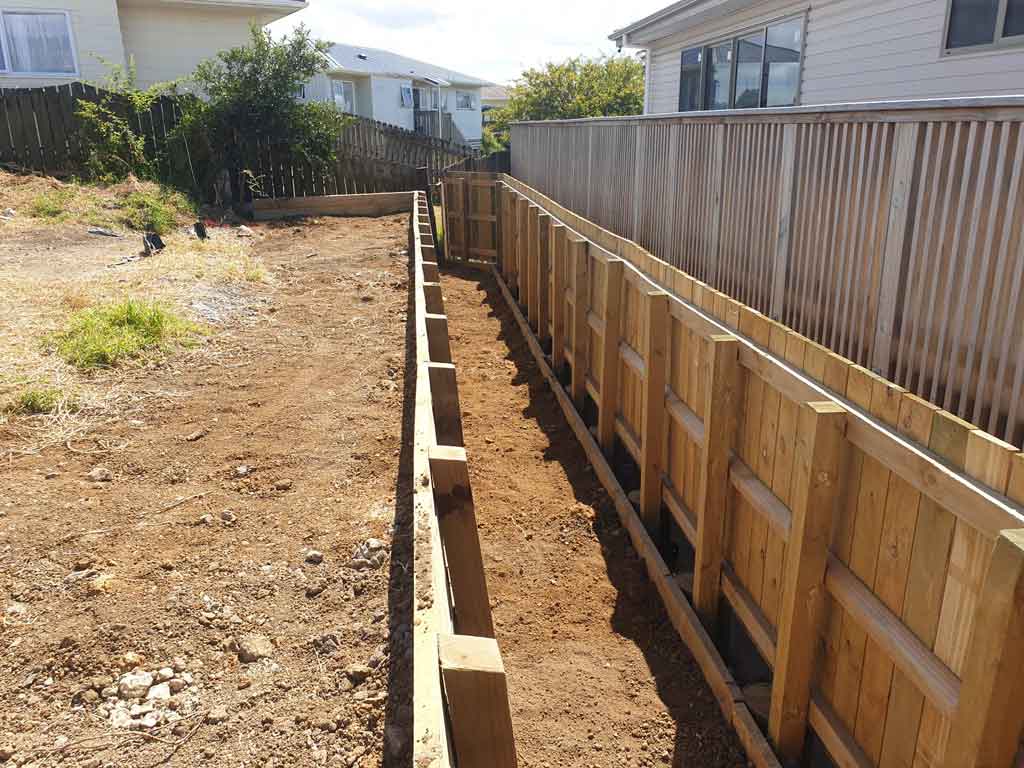

Timber Retaining Structures

Timber retaining walls are a popular choice for both residential and commercial retaining projects. They are used to hold back soil and create level areas on sloped terrain, preventing erosion and providing aesthetic appeal.

Advantages of Timber Retaining Walls

    1. Aesthetics: Timber walls blend well with natural landscapes, providing a rustic and natural look.
    2. Cost-Effective: Generally less expensive compared to stone or concrete walls.
    3. Ease of Construction: Timber is relatively easy to work with, allowing for quicker installation.
    4. Versatility: Can be used in various settings and easily customised for different designs.

Considerations

    1. Height: Timber retaining walls vary in height. Taller walls require more engineering and reinforcement.
    2. Drainage: Proper drainage is crucial to prevent water buildup and pressure behind the wall. This can be achieved with backfilling with scoria and adding drainage coil behind the wall.
    3. Foundation: A solid foundation is necessary to support the wall and prevent shifting.

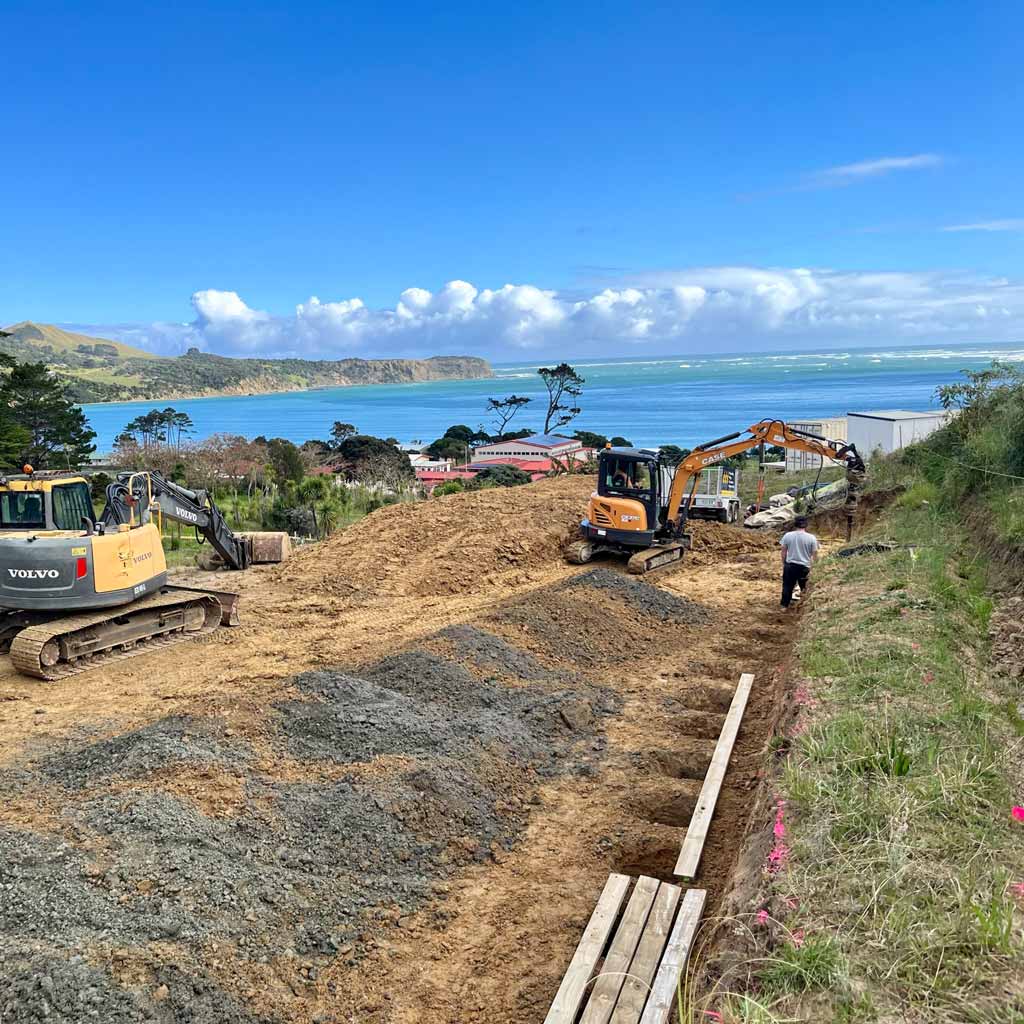

Construction Steps – Typical Timber Wall

    1. Planning and Consents: Check local building codes requirements. Design the wall considering height, length, and load. CCS can inspect and advise on the best solution for your retaining needs

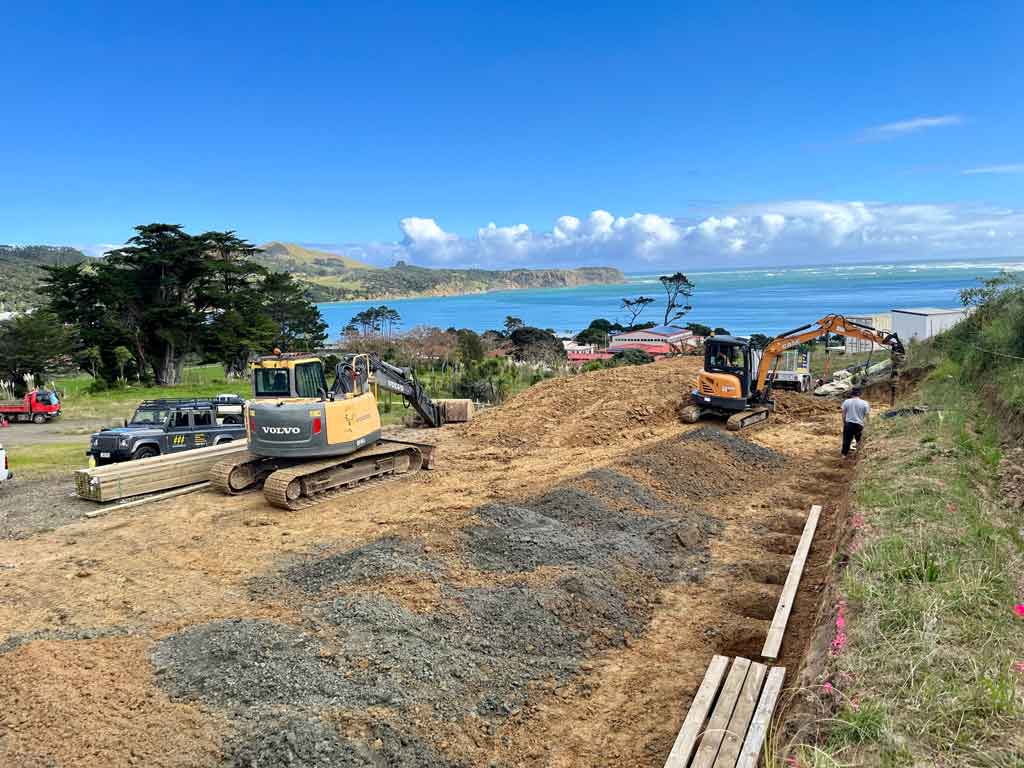

    2. Excavation: Excavate as required to allow for the walls construction including drainage.

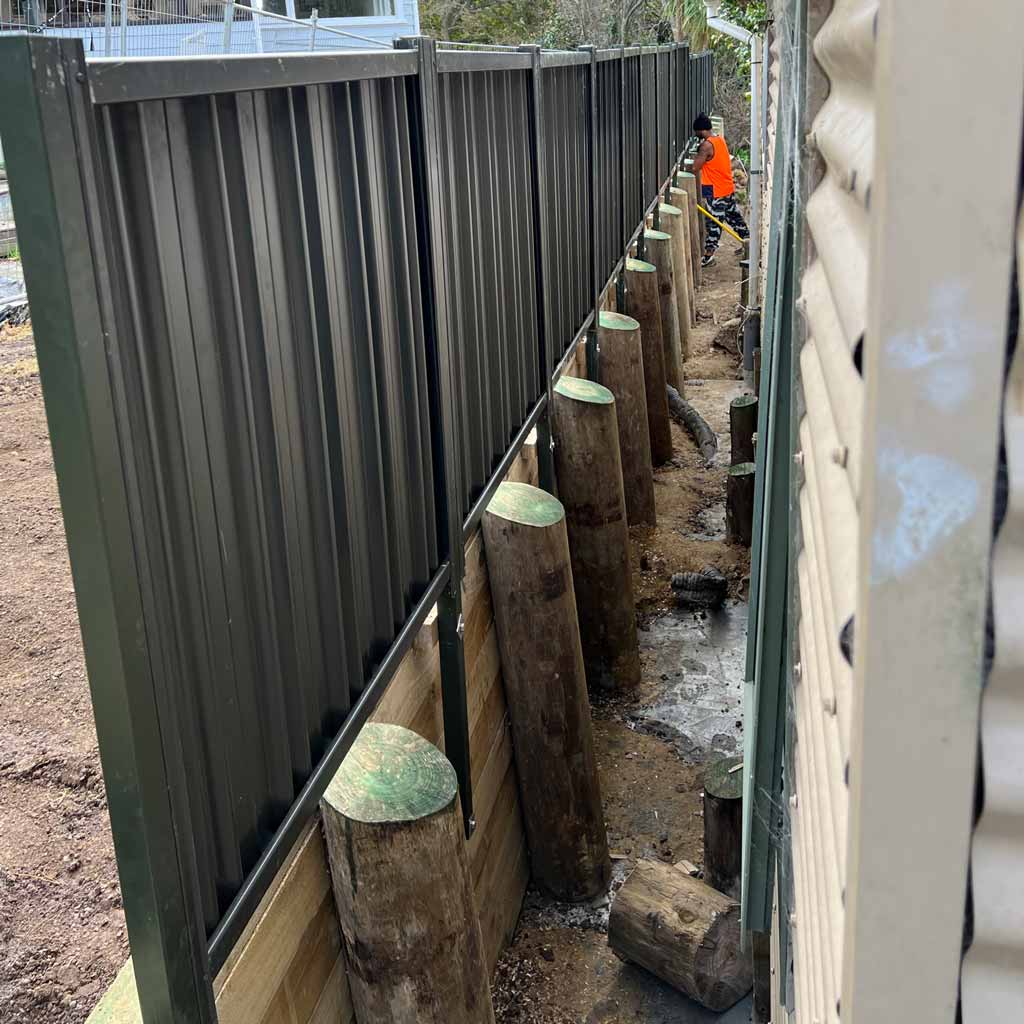

    3. Foundation: Drill SED pole holes, insert poles and pour concrete to ground level to secure.
    4. Building the Wall: Stack subsequent rows of timbers (H4 or H5), securing each layer with screws. Stagger joints for added stability.
    5. Backfilling and Drainage: Install perforated drainage pipe. Backfill with scoria to promote drainage.
    6. Finishing: Cap the top row of timbers for a finished look (as required). Add soil and landscape as desired.

Timber retaining walls are a practical and attractive option for managing soil on sloped properties. With proper design, construction, and maintenance, they can provide long-lasting functionality.

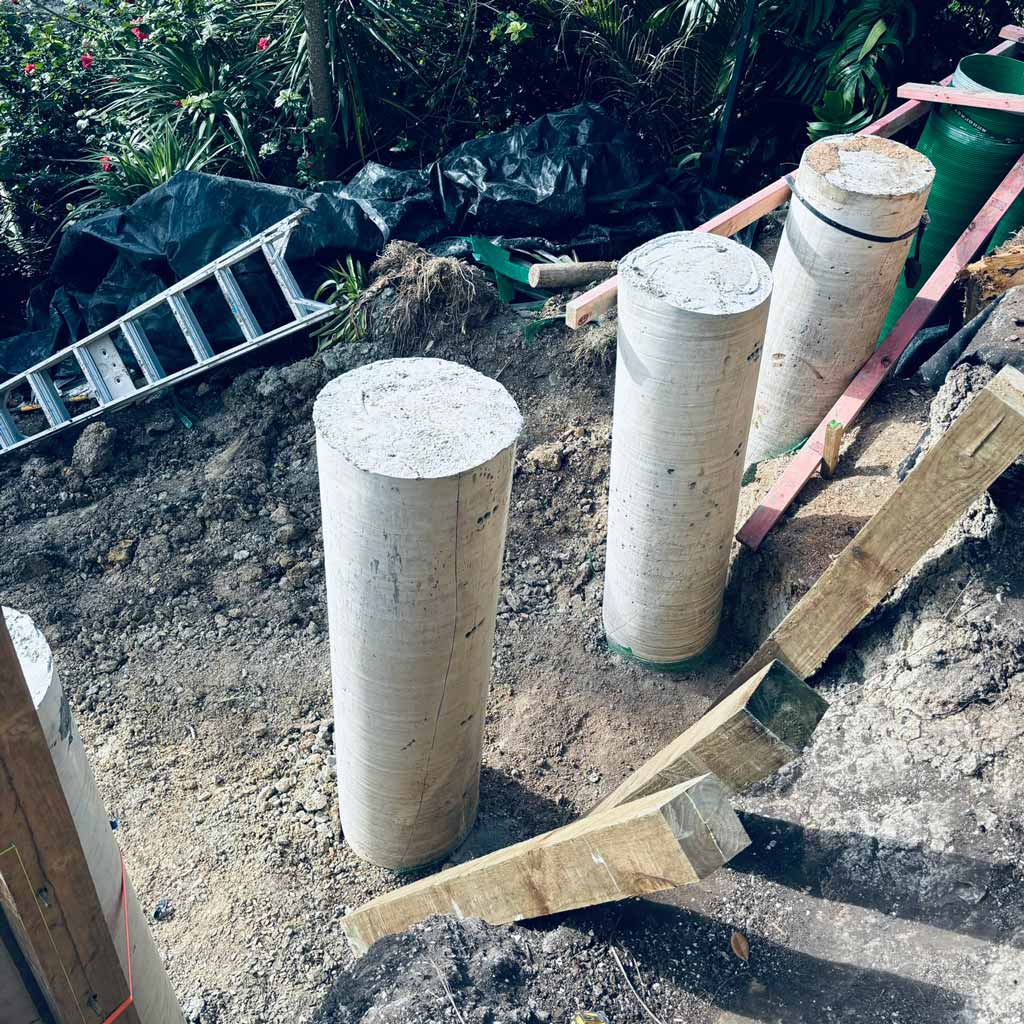

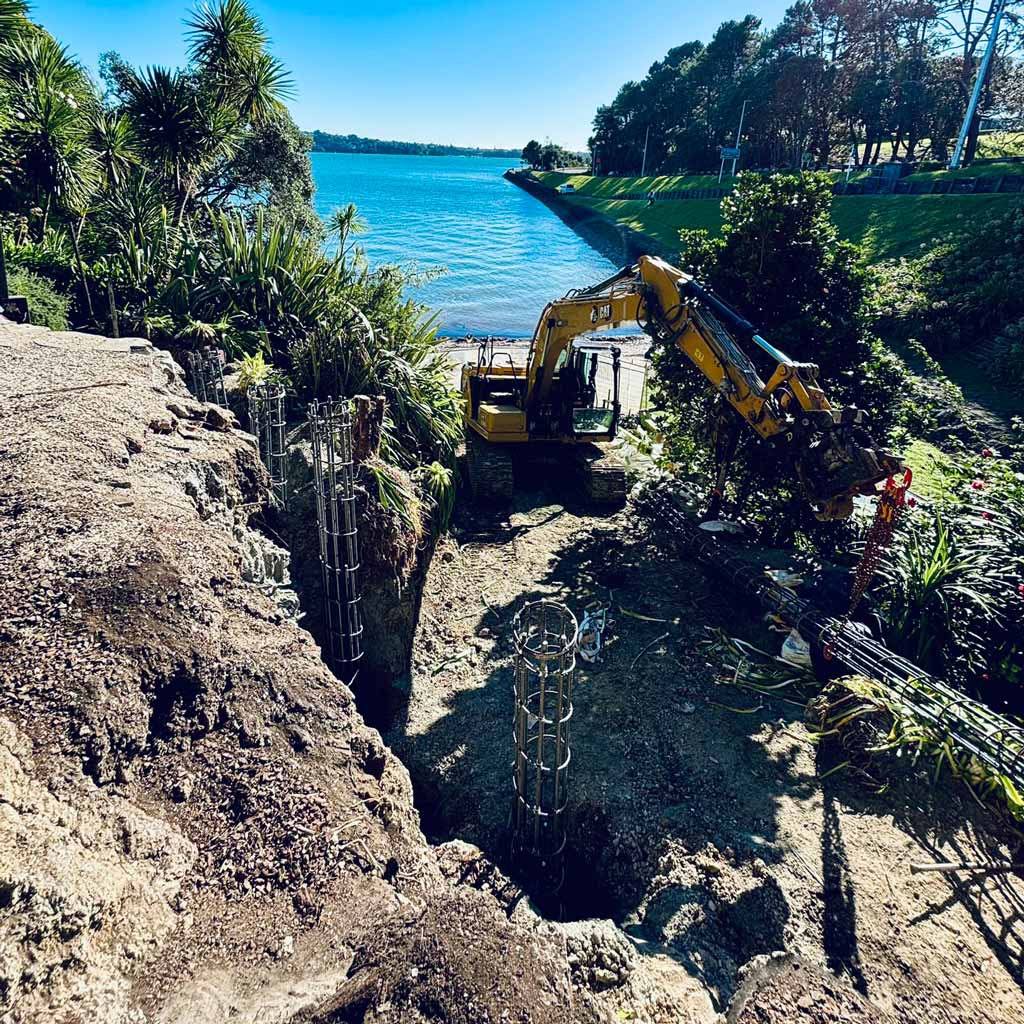

Palisade Retaining Structures

Palisade timber or concrete retaining walls are used in the construction of highly effective permanent retaining wall solutions. Typically for heavy duty applications supporting substantial loads, palisade retaining walls are also known as inground or barrier pile retaining walls. They are often constructed with a concrete capping beam and are an effective measure to preserve or remediate cliff erosion and arrest the effects of ground subsidence.

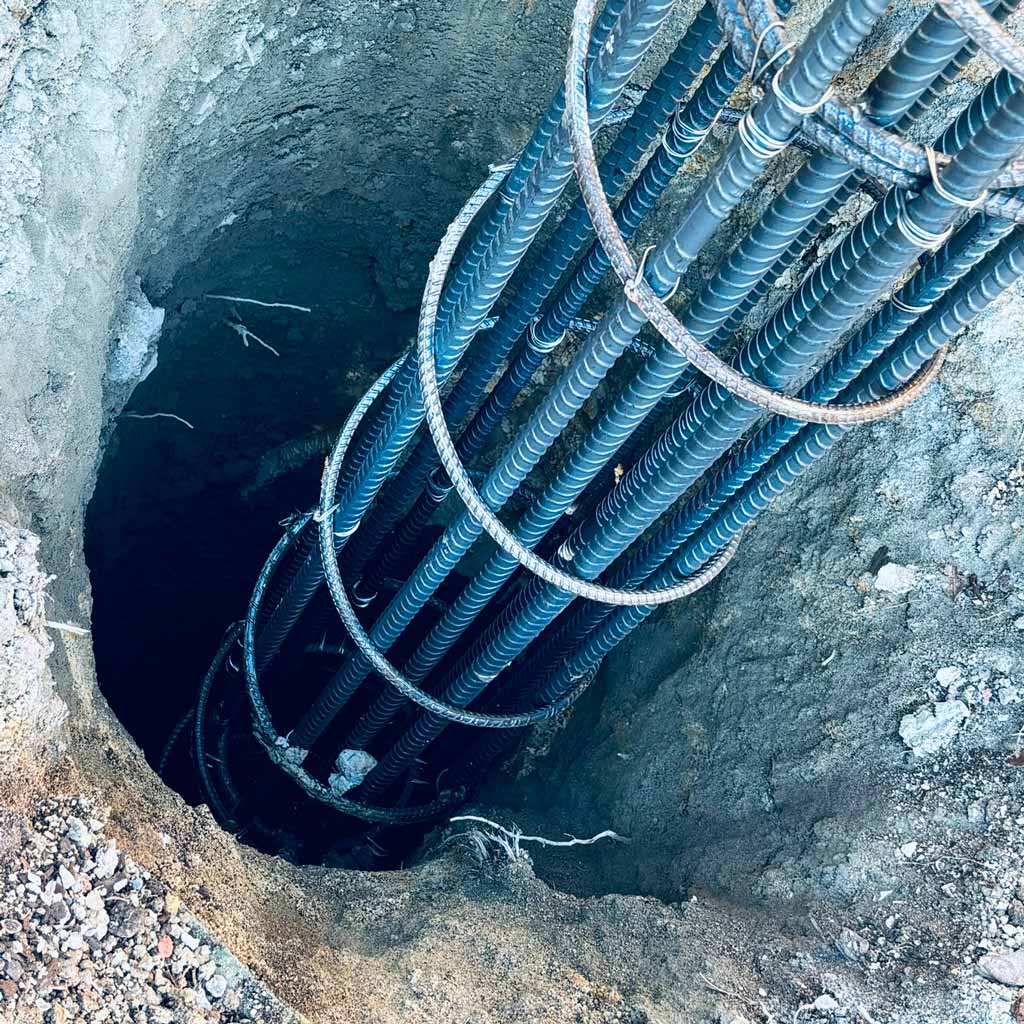

Soldier piles, or barrier pile retaining walls utilise either encased timber or reinforced concrete piles, are closely spaced and penetrate into more competent subsoils, thereby retaining the more unstable upper layers. Often a capping beam is used to link the piles, or used in conjunction with house piles to ensure stable ground support.

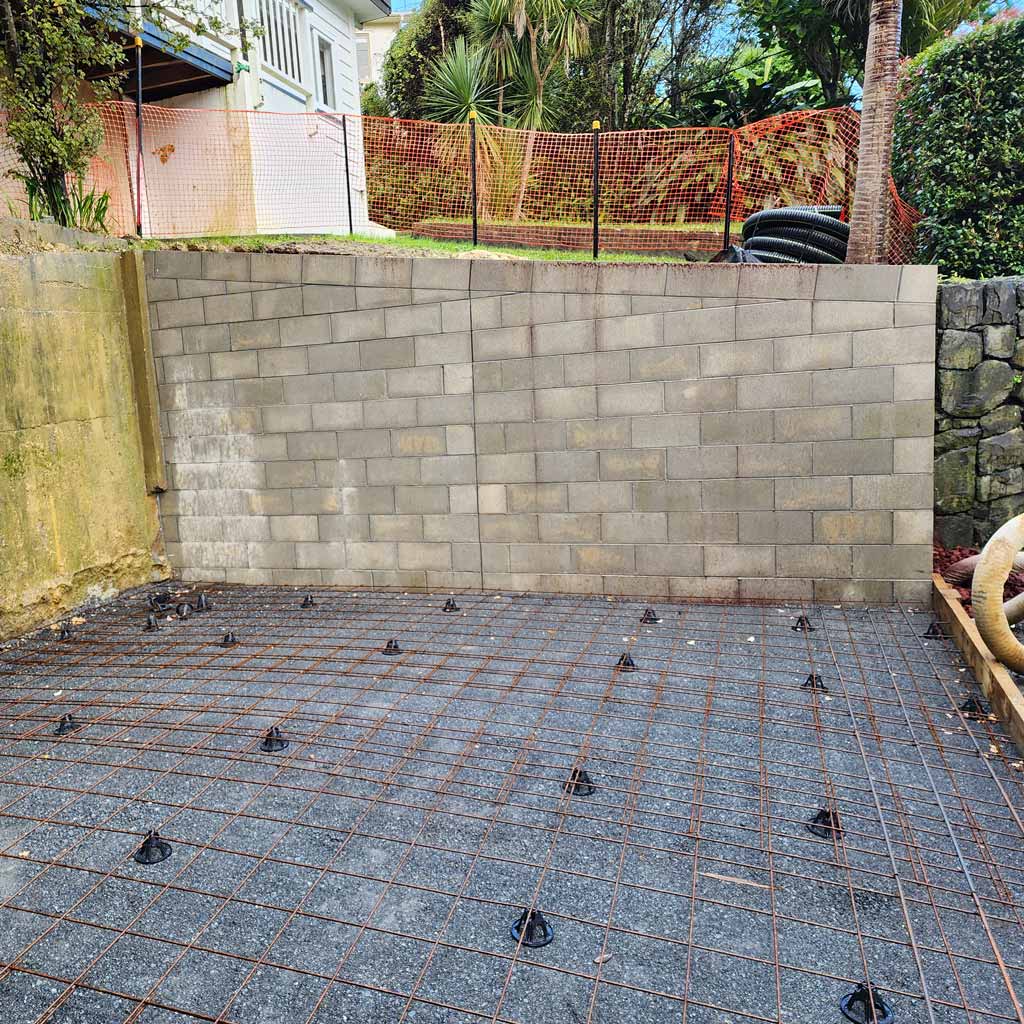

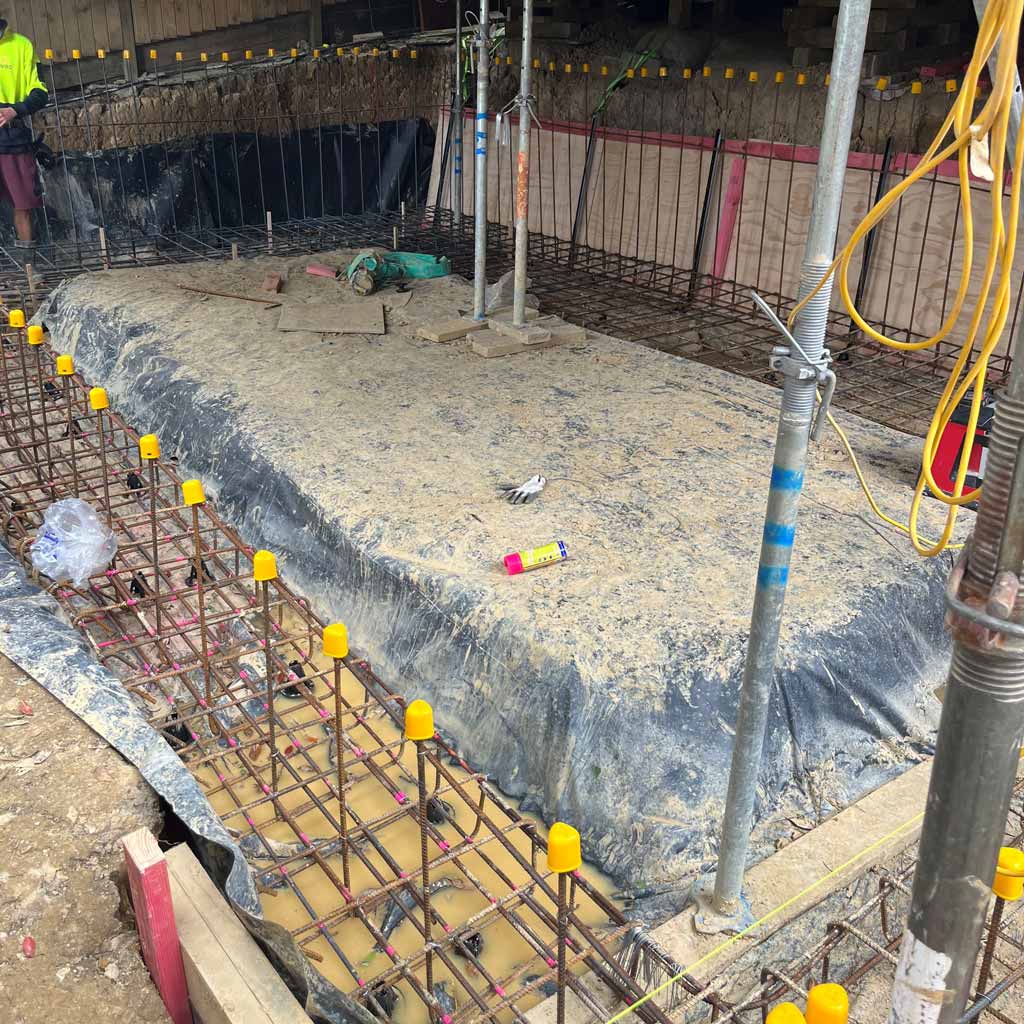

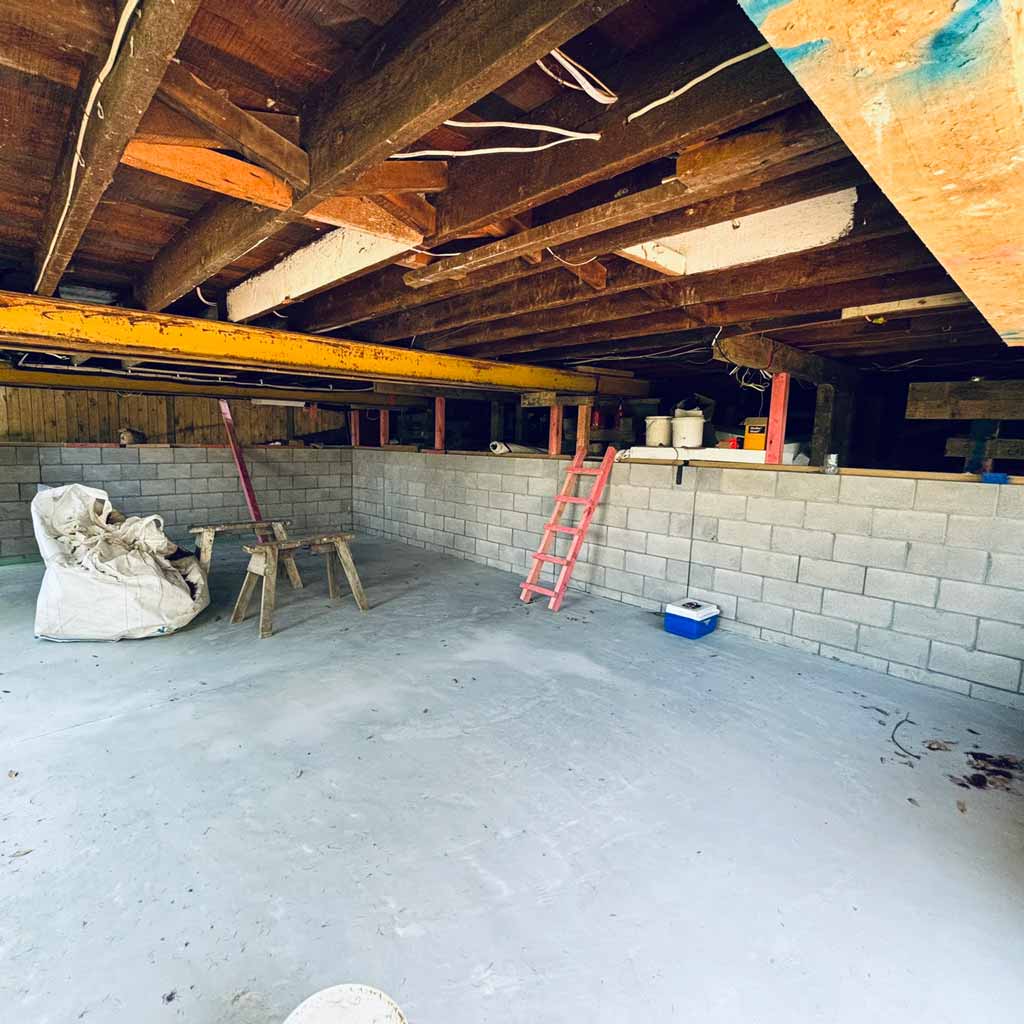

Block Retaining Structures

A block retaining wall is a type of structure built to hold back soil or other materials. These walls are commonly used to create level areas, prevent soil erosion, and manage water runoff.

Types of Block Retaining Walls

    1. Gravity Retaining Walls: Rely on their own weight to hold back the soil. Made from heavy materials like concrete, stone, or brick.
    2. Reinforced Retaining Walls: Use additional reinforcement like steel bars or geogrid to provide extra strength.
    3. Segmental Retaining Walls: Made of interlocking blocks that are easy to assemble without mortar.

Ground Stabilisation Repairs

Ground stabilisation repairs involve various techniques used to strengthen and stabilise the soil and ground on construction sites, slopes, embankments, and other areas prone to instability. The goal is to ensure the ground can support structures or remain stable under environmental conditions

Factors to Consider

When choosing a ground stabilisation method, several factors need to be considered:

    1. Soil Type: Different methods work better with certain soil types (e.g., sandy, clay, rocky).
    2. Load Requirements: The amount of load the stabilized ground needs to support.
    3. Environmental Conditions: Moisture content, groundwater presence, and seismic activity.
    4. Project Duration and Budget: Some methods are more time-consuming and expensive than others.
    5. Site Accessibility: Access to the site and the space available for equipment.

Ground stabilisation is a critical aspect of construction projects. Selecting the appropriate method depends on a thorough understanding of the site conditions and project requirements.
